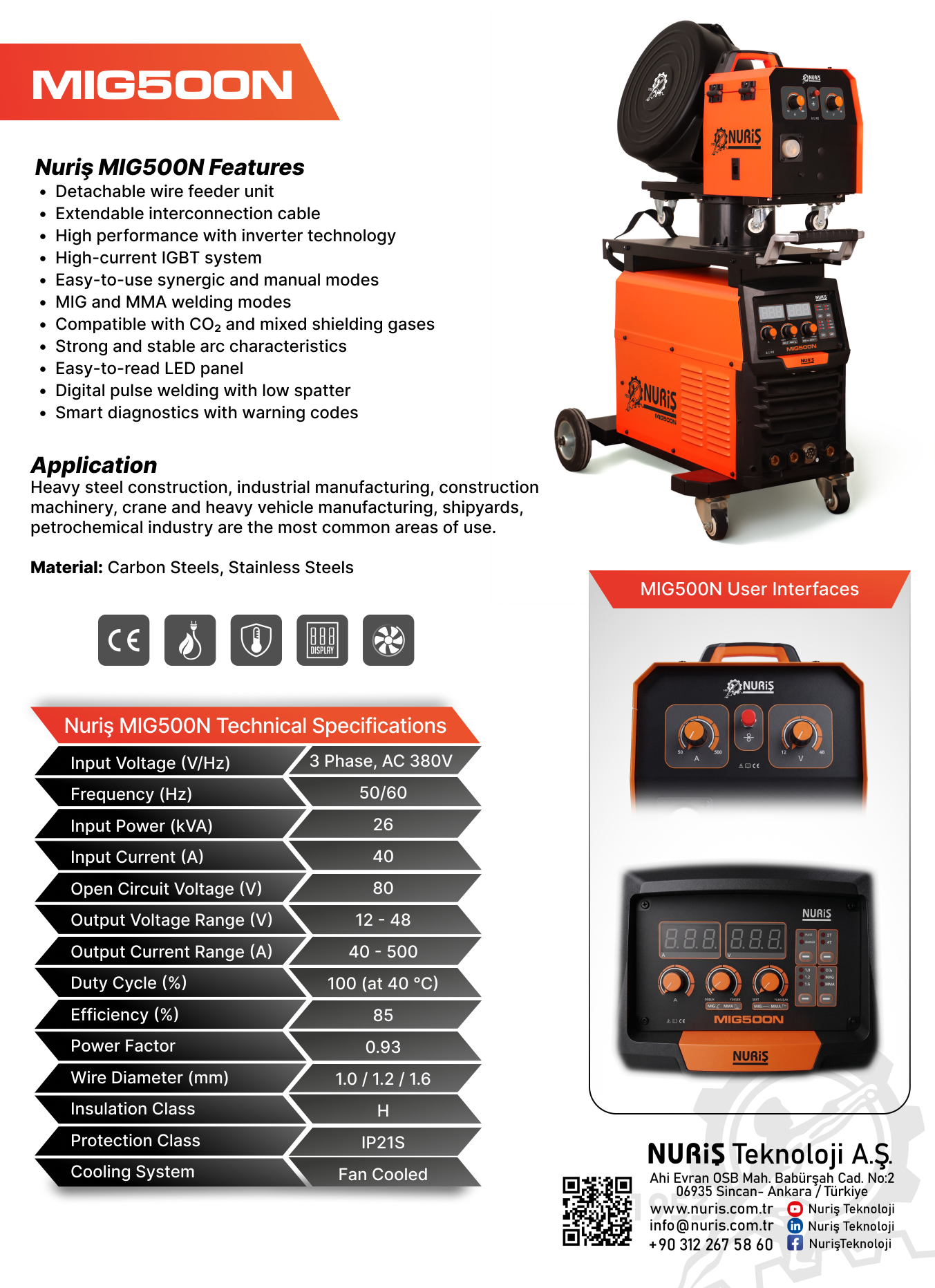

MIG500N

The MIG500N is a MIG welding machine with inverter technology.

Low Spatter and Excellent Weld Seam: Low welding spatter and an excellent weld seam are achieved thanks to the high-speed ARM platform and unique precise waveform control.
Arc Control: The arc shape can be adjusted, and the arc stiffness can be freely set via the "Arc control" knob.
Arc Starting and Wire Cutting: With unique arc ignition and wire tip ball-cutting (burn-back) technology, the arc starting success rate is greatly improved, enabling high-quality, fast spot welding capabilities.
Digital Wire Feeding: A more stable wire feed is achieved through the fully digitized wire feeding control system.
Database: Operation is simplified by the built-in, comprehensive welding expert database and synergic adjustment system.
Digital Panel: A simple and intuitive digital operation panel displays both the preset current and voltage, as well as the actual current and voltage values during welding.
Fault Diagnosis: The fault error code alarm display makes it easy to diagnose fault types and perform self-checks.
Automatic Cable Compensation: The closed-loop automatic compensation function automatically compensates for cable loss (voltage drop) based on the cable length, allowing the output cable to be extended up to 100 meters."

SALES SERVICE

Company Name	City	Phone	E-Mail

With the advanced pulse system, it provides spatter-free welding without deforming the workpiece. It is fully equipped for aluminum, stainless and steel materials.
Thanks to its synergic function, it selects the appropriate welding process by adjusting the output voltage itself, when any of the material thickness, wire speed or current values are selected, using welding programs according to any type of additional wire, wire diameter and shielding gas.
The smart fan is activated depending on operating temperature. In this way, average noise level and energy consumption is reduced. The wind tunnel built inside the machine prevents the external dust from reaching the electronic cards.
Simple user interfaces, user-friendly and multilingual TFT screen offers the operator easy and accurate usage.
With the smart trigger, the programs stored in the memory can be recalled from the torch trigger without touching the screen, and even during welding, programs can be switched.
With the integrated water cooling system, the machine can be used with air or water cooled.
Inverter technology saves energy up to 40%.
