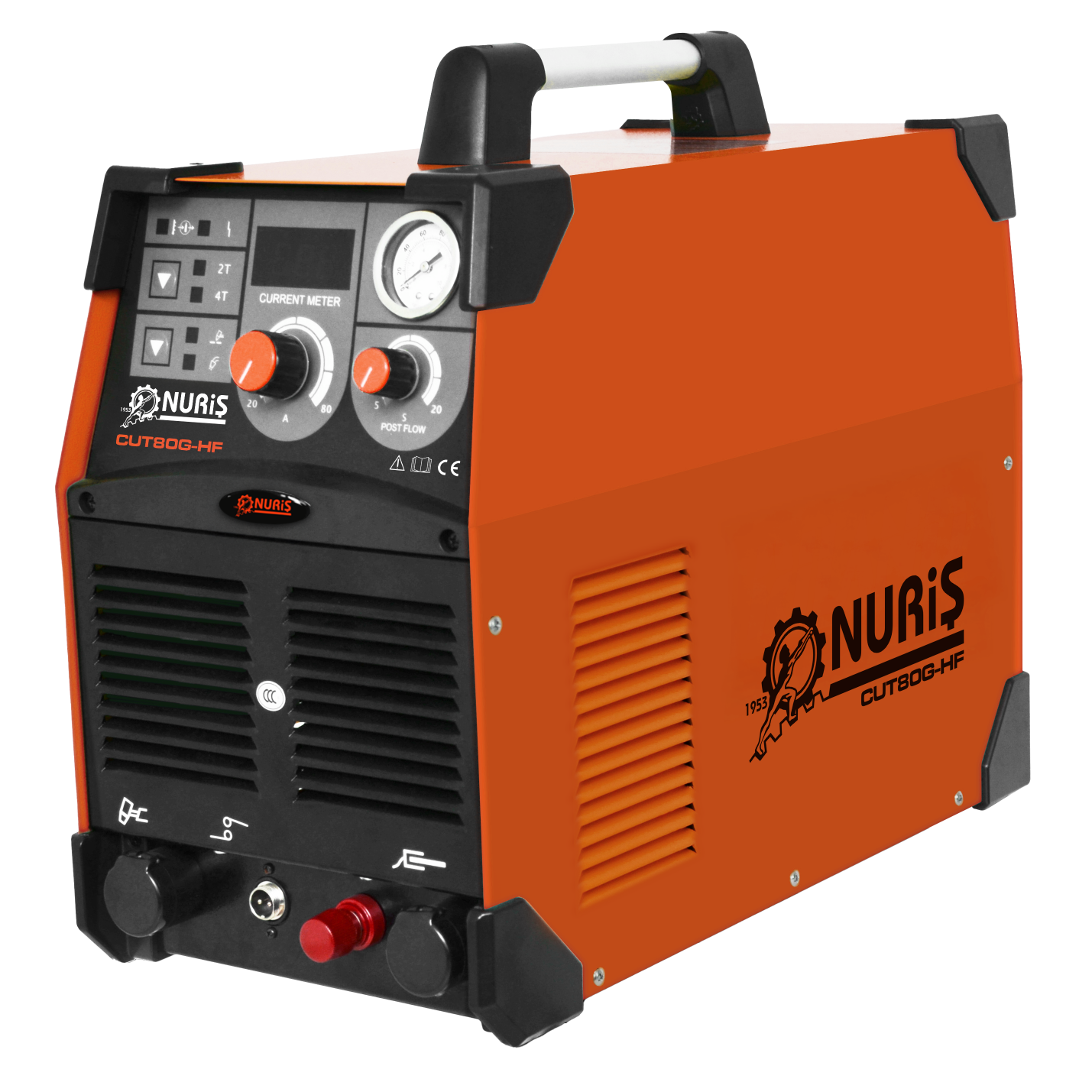

CUT80G-HF
It is the perfect choice for cutting stainless steel, aluminum, and all other metals. It provides smooth, dross-free, and minimal notch high-speed cutting up to 20 mm in stainless steel, 40mm in carbon steel, and 12 mm in aluminum.
-
It is ideal for metal cutting operations in ironworking, maintenance and repair workshops, plumbing, and assembly jobs. The cutting speed and current can be easily adjusted to achieve high cutting quality.
-
Thanks to the digital air pressure gauge on the front panel, the incoming air pressure can be easily monitored and precisely adjusted with the pressure regulator.
-
It is equipped with an advanced thermal protection system against sudden current surges and overheating caused by excessive loads from the power supply.
-
With its durability, precision, and ease of use, it makes a difference in the metalworking industry.
| Input Voltage | 380 V, 3 phase, 50/60 Hz |
| Input Power | 11.6 kVA |
| Current Adjustment Range | 20 A - 80 A |
| Open Circuit Voltage | 300 V |
| Duty Cycle (40°C) | %40 : 80 A |
| %60 : 63 A | |
| %100 : 46 A | |
| Protection Class | IP21 |
|
Cutting Thickness (max) |
Aluminium : 12 mm |
| Stainless steel : 20 mm | |
| Carbon steel : 40 mm | |
| Machines Dimensions | 508x244x423 mm |
| Weight | 21.7 kg |
| Warranty | 2 years |
| Gas Conditioner | 1 piece | |
| Chassis Cable | 3 m | |
| Torch |
|
