SAW1000K - TRACTOR
Unrivaled couple of Nuriş SAW Tractor and Submerged arc welding. As the operational efficiency of SAW series machines is considerably high, it is widely used for Carbon Cutting (ARC-AIR) works. It is a thyristor controlled high performance power supply of submerged arc welding operations, the setting stability of which is performed electronically during welding and having the feature of making voltage adjustment at variable and infinite ranges. It is the Submerged Arc Welding series operating reliably and efficiently at workshops even with the heaviest working conditions.
-

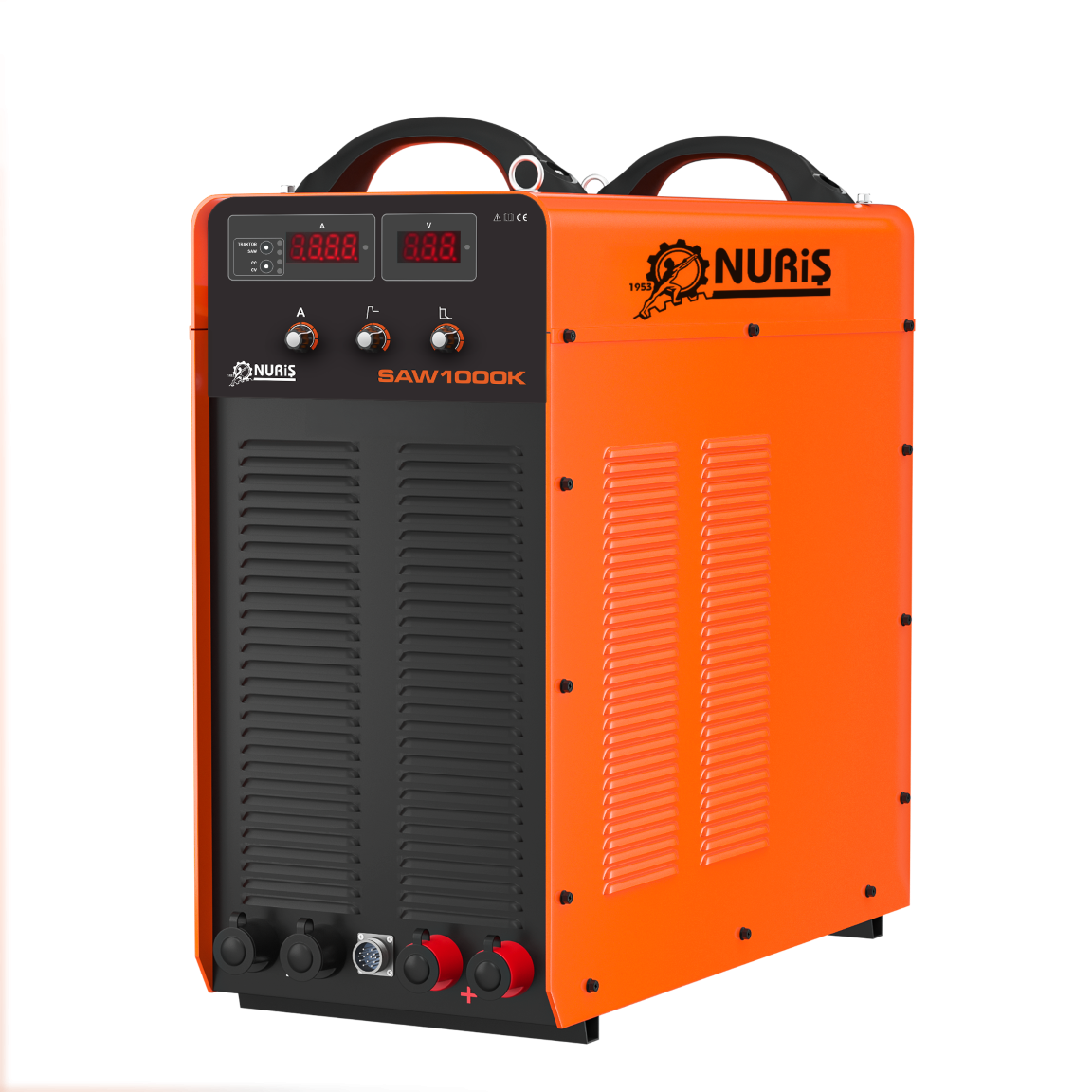

DC inverter IGBT controlled submerged arc welding machine
-
Multiple protection system including overcurrent, overheating, overvoltage, and undervoltage
-

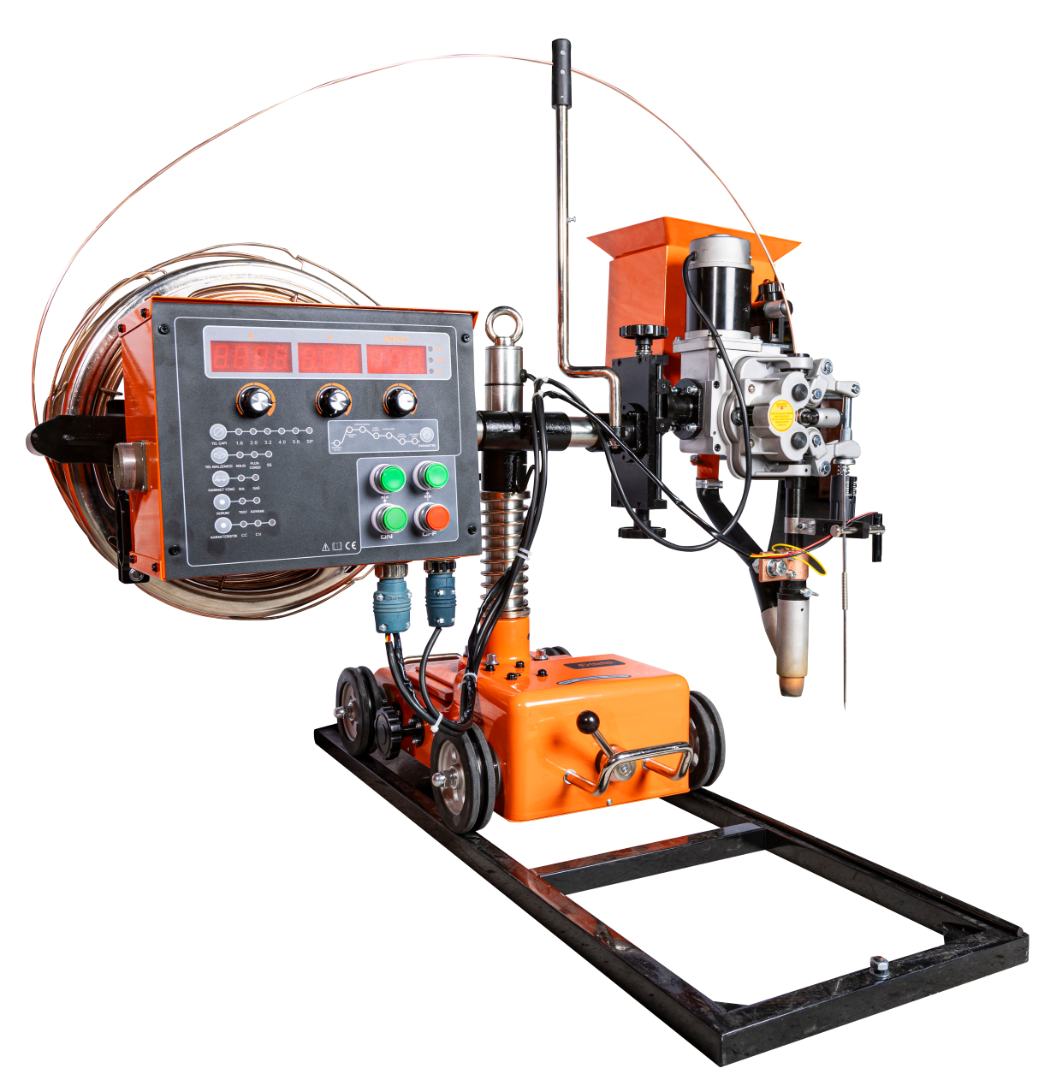

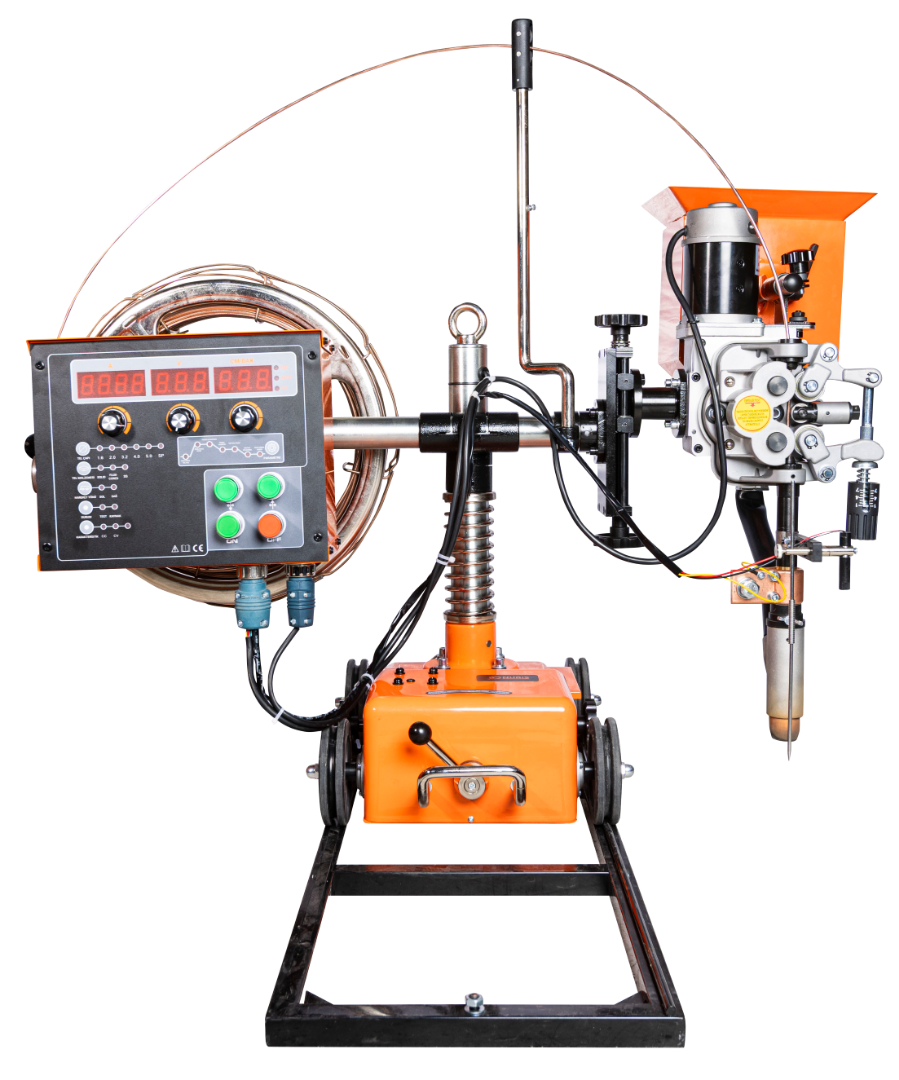

Self-controlled welding tractor
-
The most common application areas are shipbuilding, boilers, chemical containers, bridges, lifting machinery, metallurgical machinery manufacturing, offshore structures, pipe welding, and nuclear power equipment.
-
Carbon steel, stainless steel, heat-resistant steel, and their composite steels
| Mains Voltage | 380 V, 3 Ph, 50/60 Hz |
| Input Power | 56 kVA |
| Input Current | 85 A |
| Rated Output Current | 100 A - 1000 A |
| Open-Circuit Voltage | 81 V |
| Efficiency | %85 |
| Duty Cycle (40°C) | %100: 1000A / 44V |
| Cooling | Fan |
| Protection Class | IP21 |
| Welding Wire Diameter | 2.4 mm/3.2 mm/4.0 mm |
| Machine Dimensions | 770 mm x 380 mm x 775 mm |
| Weight | 87 kg |
| Waranty | 2 yıl |
| Chassis cable | 5m (2*70mm2) |
| Welding cable | 15m (2*70mm2) |
| Tractor Control Cable | 15m |
