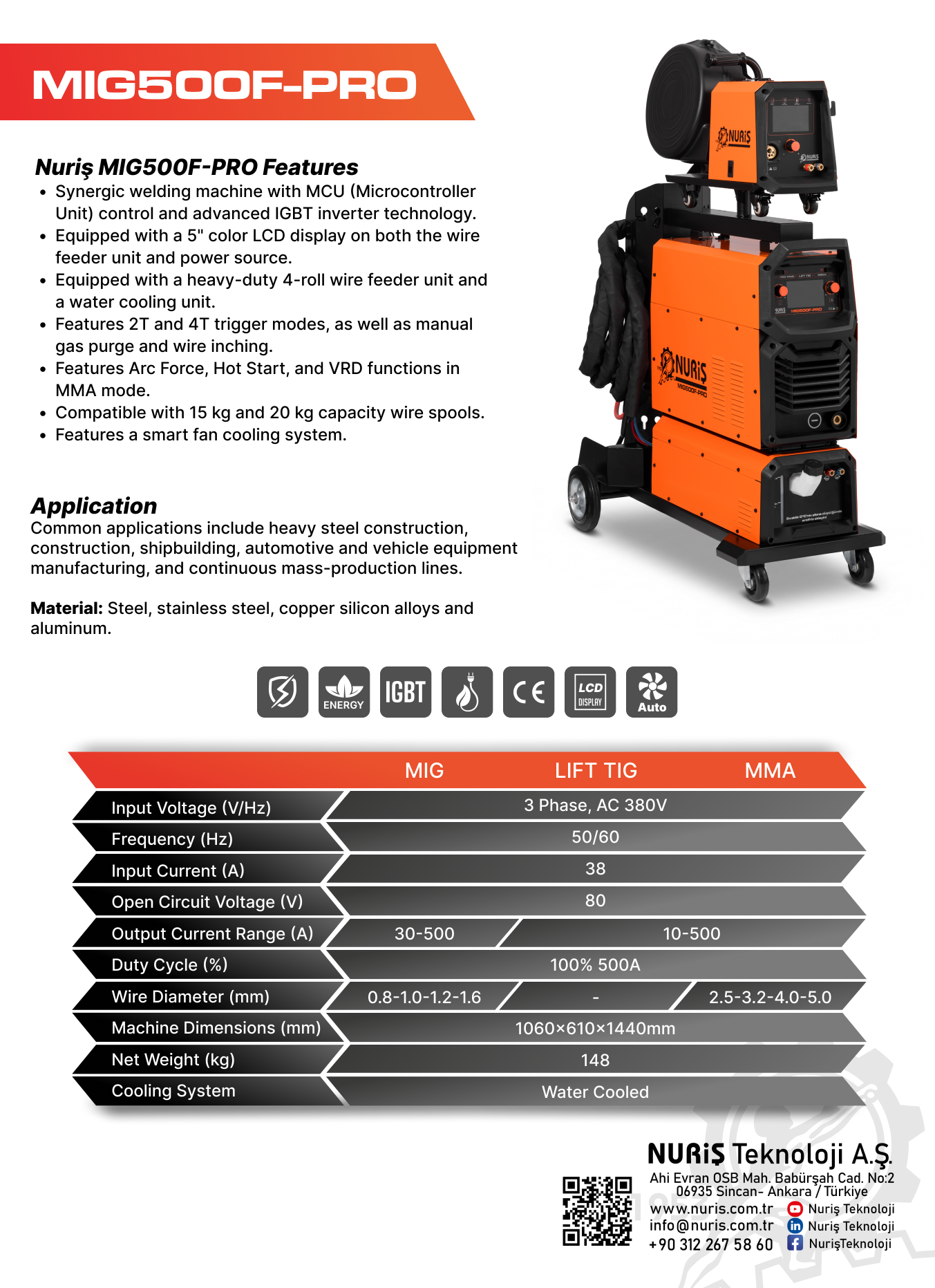

MIG500F-PRO

Nuriş MIG500F-PRO Features

  • It features MCU control (microprocessor-controlled) and advanced IGBT inverter technology.

  • It is equipped with a 5” Color LCD screen on both the wire feeder unit and the power supply.

  • It features a heavy-duty 4-roller wire feeder unit and a water cooling unit.

  • It includes 2T and 4T trigger modes, as well as manual gas and wire feeding features.

  • It features Arc Force, Hot Start, and VRD options in MMA mode.

  • It is compatible with 15 kg and 20 kg capacity wire spools.

  • It features an intelligent fan cooling system.

Areas of Use (Application) Heavy steel construction, construction, shipyards, automotive and on-vehicle equipment production, and continuous mass production lines are the most common areas of use.

SALES SERVICE
Company Name City Phone E-Mail
  • With its enhanced pulse system, it enables spatter-free welding without deforming the workpiece. It offers the opportunity to be used fully equipped for stainless steel and steel materials.

  • Thanks to its synergistic function, it utilizes welding programs according to all types of filler wire, wire diameter, and shielding gas type; when any of the material thickness, wire speed, or current values are selected, it automatically adjusts the output voltage to select the appropriate welding process.

  • Stable and high-quality performance with IGBT inverter technology.

  • Stable welding, low spatter, deep melting, and smooth weld bead thanks to the advanced digital control system.

  • The welding voltage can be preset, and the voltage and current can be monitored simultaneously during welding; it is user-friendly, economical, and practical.

  • Closed-loop feedback circuit: Constant voltage output and excellent voltage regulation capability up to ±10%.

  • Stable welding, low spatter, deep penetration, and excellent weld bead formation.

  • Reliable arc ignition with slow wire feeding at the start of the arc.

MIG500F-PRO PARAMETERS
Mains Voltage 380 V, 3 Ph, 50/60 Hz
Input Power 24.3 kVA
Current Adjustment Range 50 A - 500 A
Open-Circuit Voltage 80 V
Duty Cycle (MIG mode, 40°C) %100: 500 A
Protection Class IP21S
Machine Dimensions 1060 mm x 610 mm x 1440 mm
Weight 116 kg
Garantie 2 years



USER'S MANUAL
DOWNLOAD BROCHURE
